What are transformers, audio transformers and chokes – and what are they used for?

Audio transformers, power transformers and chokes are magnetic components that transfer, adapt or smooth energy or audio signals by means of windings and a magnetic core. In tube amplifiers, guitar amps, HiFi equipment and studio gear, they are used for tasks such as impedance matching, galvanic isolation, voltage conversion and power supply filtering.

In practical terms, this means these components are not universal standard parts. They must match the circuit, the required voltages and currents, and the mechanical installation situation exactly. They influence reliability, hum behaviour, operational safety and, in the case of audio transformers, also bandwidth, dynamics and tonal character.

What role do output transformers play in tube power amplifiers for HiFi and guitar?

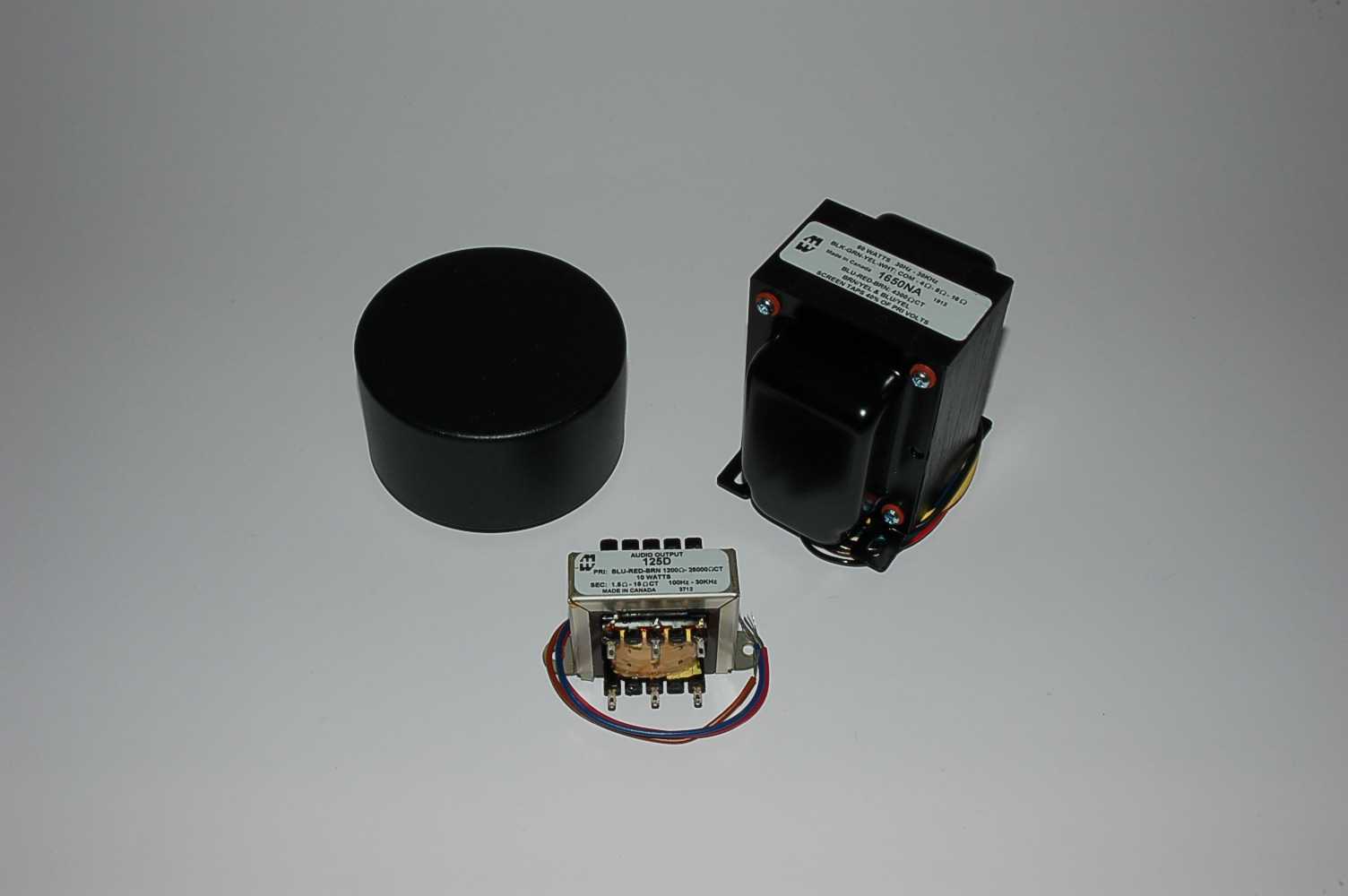

An output transformer matches the high output impedance of a tube power stage to the low impedance of a loudspeaker and transfers the power to suitable 4, 8 or 16 ohm taps. In HiFi power amplifiers and guitar amplifiers, it is a key component because it has a major influence on frequency response, bass control, dynamics and overload behaviour.

Important factors for selection, replacement and upgrade are primary impedance, power handling, bandwidth and the correct topology. Single-ended transformers must safely handle DC magnetization, while push-pull transformers are built differently and therefore cannot simply be exchanged. Anyone looking to buy an output transformer should therefore always consider the circuit, output tube configuration and speaker load together.

What are audio line transformers and input transformers used for in studio equipment?

Line transformers and input transformers are audio transformers for line-level signals that provide galvanic isolation, balanced signal handling and defined impedance matching. They are used in preamplifiers, D/A converters, studio chains, tube equipment and DIY audio projects to reduce ground loops, isolate ground references and minimize interference.

Key factors are bandwidth, low distortion at real signal levels and suitable source and load impedances. For service work, studio applications and DIY projects, the following applies: an unsuitable audio transformer can shift levels, roll off treble or saturate at high levels. For that reason, the selection should always be matched to the intended application.

What does a power transformer do in a tube amplifier – and which specifications must match?

A power transformer converts mains voltage into the required secondary voltages for high voltage, heaters and, where necessary, additional auxiliary voltages. It is the basis for safe and stable operation because it largely determines voltage level, current reserve, startup behaviour and thermal load capacity.

For replacement and new builds, the decisive factors are secondary voltages under load, current ratings, insulation class, heater currents, inrush current behaviour as well as mechanical dimensions and mounting. In tube equipment, the interaction with the rectifier, filter chain and tube complement is especially important so that voltage levels, hum behaviour and thermal load remain safely within the intended range over the long term.

What is the function of choke coils in the power supply – and when is an upgrade worthwhile?

Chokes are inductive components in the power supply that reduce hum and ripple and stabilize the current supply. They are often used as part of an LC or CLC filter in HiFi amplifiers, guitar amps, studio equipment and high-quality tube power supplies whenever a quieter supply and better load stability are required.

Important selection criteria are inductance, permissible DC current, DC resistance, voltage rating and mechanical design. An upgrade can make sense if the goal is to reduce hum, increase power supply reserves or improve behaviour under load changes, provided that the circuit is designed accordingly.

How do the selection tables for transformers, power transformers and choke coils from BTB Elektronik help with choosing the right part?

The selection tables for transformers, power transformers and choke coils from BTB Elektronik make it easier to assign technical data more quickly, more reliably and in a more practical way. Instead of searching only by product name, buyers can compare suitable components specifically by application, power, impedance, voltages, taps, construction type or matching amplifier series. This is especially helpful when a transformer, power transformer or choke must match a device, amplifier or DIY project both electrically and mechanically.

Especially in tube amplifiers, guitar amps, HiFi projects and DIY applications, these selection aids from BTB Elektronik significantly reduce the risk of incorrect purchases. The tables make it easier to choose replacement parts, upgrades and parts for new builds because important technical key data is presented in a clear and structured way. Anyone specifically searching for selection tables for output transformers, power transformers for tube amplifiers or choke coils for power supplies will find a particularly well-structured and technically focused selection guide at BTB Elektronik.

Which applications are the transformers and power transformers in this category especially suitable for?

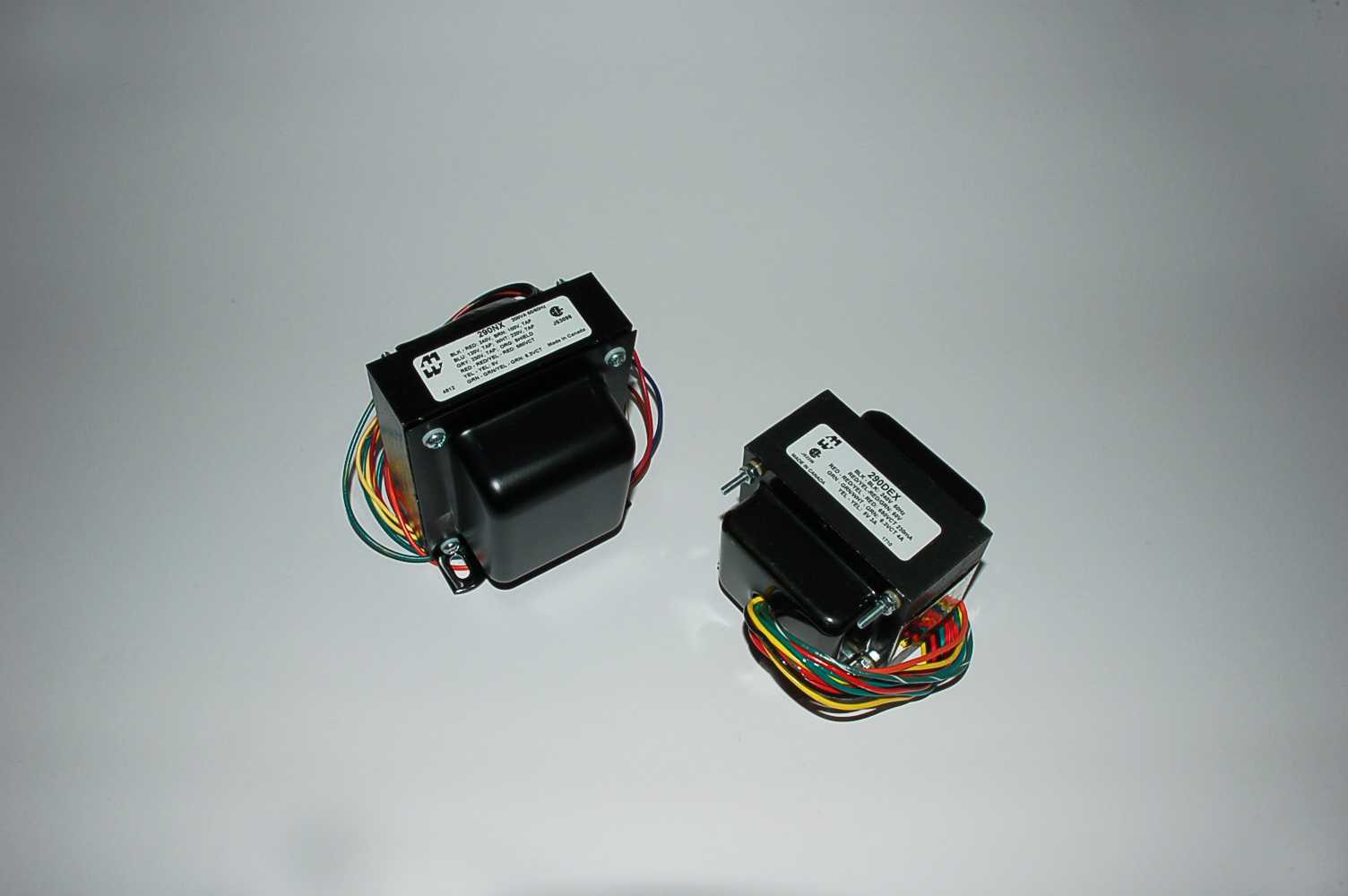

A large part of this category is designed for 1:1 replacements for many guitar amplifiers. This includes suitable replacement solutions for numerous Marshall, Fender, Vox, Peavey and other amp models when a power transformer or output transformer has burned out in service or needs to be replaced correctly for technical reasons. In repair work, clear matching, reliable quality and fast availability are especially important.

Single-ended output transformers, on the other hand, are particularly suitable for DIY projects, self-built tube power amplifiers, HiFi amplifiers and targeted sonic upgrades for existing equipment. High-quality solutions from Lundahl are especially interesting when an amplifier is to be upgraded technically and sonically or when a high-quality SE transformer is required for a new project. At the same time, these transformers are also suitable as replacement parts when an existing transformer is defective and needs to be replaced with a technically matching unit.
