211 / 845 / 805 / 805A power triodes – selection, applications, and correct replacement in high-end power amps

What are 211, 845 and 805, and what are power triodes used for?

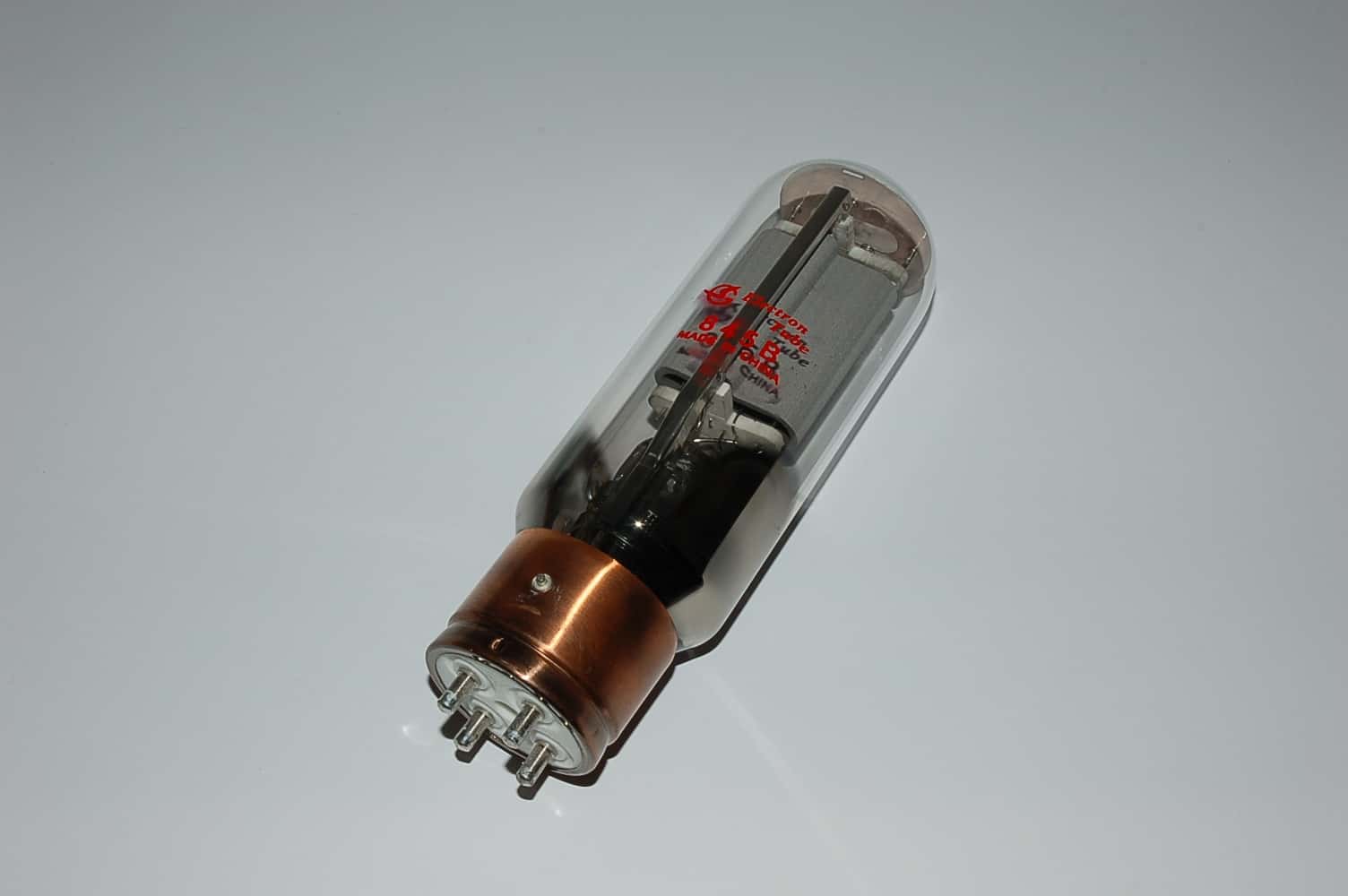

211, 845 and 805 are 10 V directly heated power triodes with a 4-pin bayonet base, used in tube power amplifiers to generate the output power and drive the loudspeaker through an output transformer. They are mainly used in audio high-end and hi-fi power amps (often single-ended, less often push-pull) where high voltage, high dissipation, and the characteristic operating behavior of a power triode are required.

Typical applications include high-quality Class A amplifiers (211 and 845) and Class A2 amplifiers (805 and 805A), in which the output tube strongly defines both the technical behavior and the audible result. For service and operation it is essential to understand that these tubes work at very high voltages (roughly 600 V to 1200 V), so correct design of the power supply, filament/heater supply, bias, and output transformer is mandatory. Work on such equipment is not for beginners—qualified technicians are required.

Are 211, 845 and 805 interchangeable?

211, 845 and 805 are not interchangeable, even if they are used in similar high-power applications. They differ mainly in transfer curves, typical operating points, and internal plate resistance, so swapping types without circuit and transformer changes can lead to malfunction or damage.

For end users, the rule is to replace only with the exact type specified by the amplifier. For workshops and developers, any conversion to another type requires re-evaluating and adapting supply voltages, filament power, bias concept, driver stage capability, and the output transformer to match the new tube’s requirements.

What is the difference between 805 and 805A?

805 and 805A are closely related power triodes, but they are not a 1:1 swap. In today’s nomenclature, the 805 typically has an anode top cap, while the 805A does not because its anode connection is routed through the base.

Because of the different anode connection and the mechanical/electrical implementation in the amplifier, the correct tube type must be chosen according to the device design and the specified socket/connection layout.

How do I choose the right power triode for hi-fi and service work?

The correct choice depends on the amplifier model and its operating design, and it is also influenced by practical constraints such as budget and mechanical clearance (some variants have a larger glass diameter). In this class of tubes, the amplifier’s transformer and power supply design are as decisive as the tube label.

For end customers, the safest method is to match the exact type specified by the amplifier and ensure the tube fits mechanically and thermally. For service operations, it is good practice to verify operating voltage and bias after installation and to ensure the amplifier’s safety requirements for high-voltage operation are met.

Why is pair selection (matched pairs) important for 211/845/805?

Matched pairs are two tubes selected to closely match electrical parameters so that both channels operate equally. In many of these concepts—often single-ended designs with little or no global feedback—matched pairs are critical to achieve consistent channel balance and stable stereo imaging.

For that reason, pairs in this category are typically supplied as matched sets. For professional users, matched pairs reduce bias adjustment effort and improve repeatability across service cases and long-term operation.

What about availability, shipping, and spare-part supply in Germany/Europe?

Power triodes such as 845, 211, 805 and 805A are sensitive, high-impact output tubes used as central elements in high-end amplifiers. As of 2026, all listed types are in production, which supports practical long-term servicing.

In Germany and across Europe, reliable spare-part supply matters because these amplifiers are often operated over long periods and need fast recovery in service cases. End customers benefit from clear type identification and matched-pair options, while professional users rely on consistent specifications and predictable re-ordering. International shipping is relevant for export equipment, globally supported service cases, and high-end systems operated outside Europe.
