Power transformer > 351V

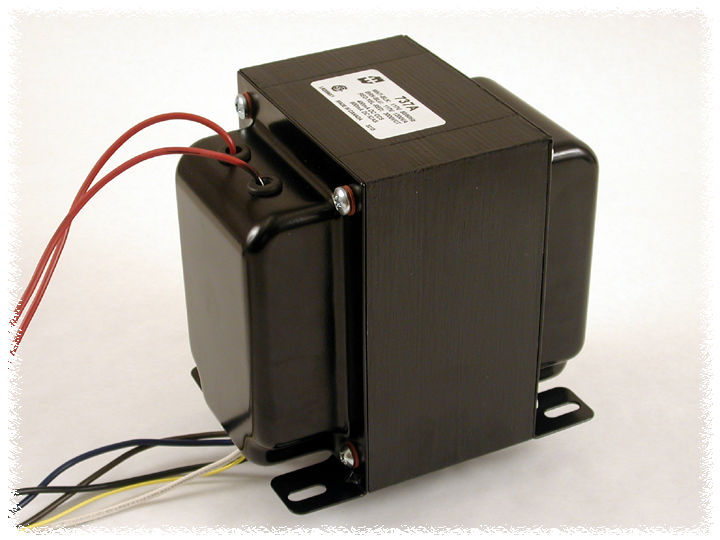

715A Hammond Manufacturing EU power transformer 352VASec. 510-0-510V / 300mA, high voltage secondary with CTPri. 117/234V 50Hz, enclosed chassis mount steel caseSize approx. 117.6 x 95.3 x 114.3 mm, for HV tube amp supplies
Delivery time: ca. 1 - 5 days
739A Hammond Manufacturing EU power transformer 1610VASec. 1750-0-1750V / 375mA CCS, high voltage secondary CTPri. 117/234V 50Hz, 565mA ICAS, enclosed steel caseSize approx. 134.1 x 205.6 x 161.6 mm, for HV tube supplies
Delivery upon request
728A Hammond Manufacturing EU power transformer 346VASec. 1000-0-1000V / 173mA, high voltage secondary with CTPri. 117/234V 50Hz, enclosed steel case chassis mountSize approx. 95.3 x 125.4 x 115.1 mm, for HV tube supplies
Delivery upon request
726A Hammond Manufacturing EU power transformer 312VASec. 890-0-890V / 202mA, high voltage secondary with CTPri. 117/234V 50Hz, enclosed steel case chassis mountSize approx. 95.3 x 125.4 x 115.1 mm, for HV tube supplies
Delivery upon request
382X Hammond Manufacturing EU power transformer 283VASec. 500-0-500V / 230mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 6A, Pri. 100-240V 50HzSize approx. 95.3 x 127.0 x 115.8 mm, for 811A and HV SE amps
Delivery time: ca. 1 - 3 days
379X Hammond Manufacturing EU power transformer 193VASec. 425-0-425V / 173mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 5A, Pri. 100-240V 50HzSize approx. 95.3 x 106.4 x 115.9 mm, for tube amp builds
Delivery time: ca. 1 - 5 days
378X Hammond Manufacturing EU power transformer 237VASec. 400-0-400V / 230mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 6A, Pri. 100-240V 50HzSize approx. 95.3 x 106.4 x 115.8 mm, for tube amp builds
Delivery time: ca. 1 - 3 days
378CX Hammond Manufacturing EU power transformer 465VASec. 400-0-400V / 534mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 6A, 3.15-0-3.15V / 9A, Pri. 100-240V 50HzSize approx. 111.3 x 152.4 x 139.7 mm, for tube amp builds
Delivery time: ca. 1 - 3 days
375X Hammond Manufacturing EU power transformer 171VASec. 400-0-400V / 155mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 5A, Pri. 100-240V 50HzSize approx. 79.4 x 106.3 x 96.5 mm, for tube amp builds
Delivery time: ca. 1 - 5 days
374X Hammond Manufacturing EU power transformer 141VASec. 375-0-375V / 127mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 5A, Pri. 100-240V 50HzSize approx. 79.4 x 95.3 x 96.8 mm, for tube amp power builds
Delivery time: ca. 1 - 3 days
374BX Hammond Manufacturing EU power transformer 200VASec. 375-0-375V / 201mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 6A, Pri. 100-240V 50HzSize approx. 95.3 x 101.6 x 115.8 mm, for tube amp builds
Delivery time: ca. 1 - 5 days
374AX Hammond Manufacturing EU power transformer 136VASec. 360-0-360V / 138mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 3A, 3.15-0-3.15V / 3.5A, Pri. 100-240V 50HzSize approx. 79.4 x 95.3 x 96.8 mm, for tube amp power builds
Delivery time: ca. 1 - 5 days
300BX Hammond Manufacturing EU power transformer 280VASec. 400-0-400V / 288mA, 50V bias tap from HV center tapSec. 2.5-0-2.5V / 1.2A, 2.5-0-2.5V / 3A, 3.15-0-3.15V / 6ASize approx. 95.3 x 127.0 x 115.8 mm, for 300B SE amp builds
Delivery time: ca. 1 - 3 days

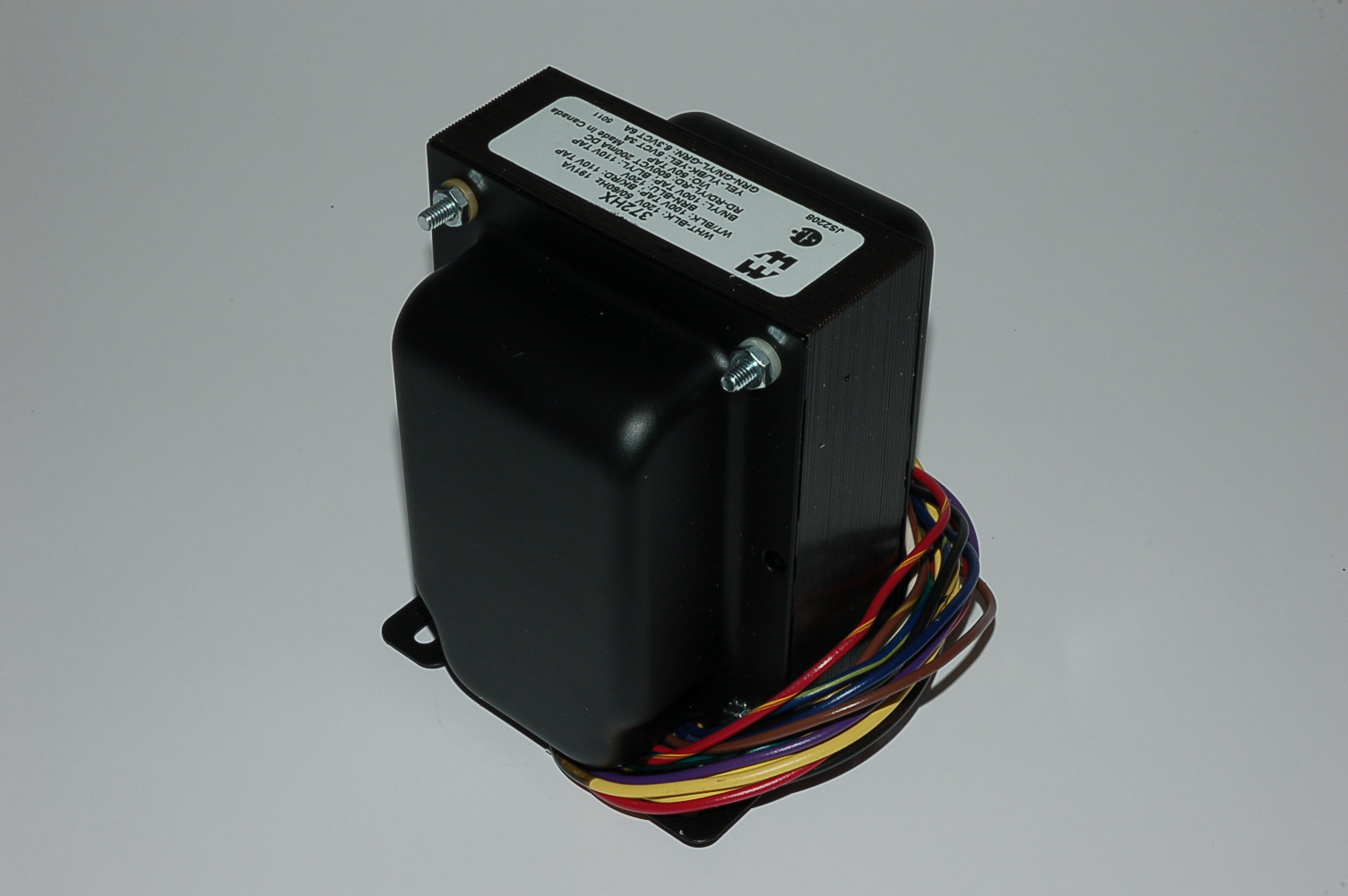

274AX Hammond Manufacturing US/JP power transformer 137VASec. 360-0-360V / 138mA, high voltage secondary with CTSec. 5V / 3A, 3.15-0-3.15V / 3.5A, Pri. 117/125V 50HzSize approx. 79.5 x 88.9 x 98.6 mm, for tube amp power builds
Delivery time: ca. 1 - 3 days
